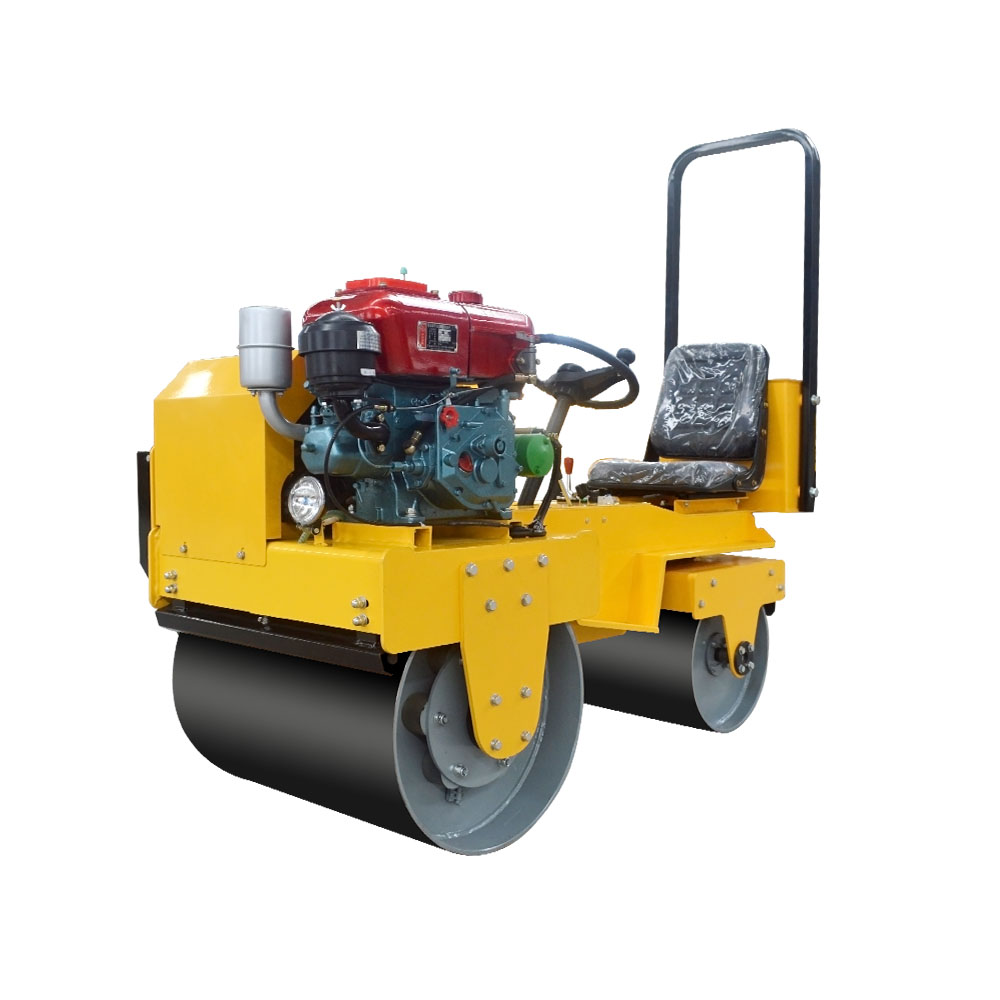

HT-JS700C Small ride-on Road Roller (water-cooled diesel)
CONTACT Beleevo
Sending A Form Implies That You Agree To Receive E-Mails From HighTop® With Information About Services, Programs, Etc.
Overview
HIGHTOP road rollers are ideal for road construction, offering a range of models from 0.5 to 3.5 tonnes. They efficiently enhance material compactness and smoothness through vibratory or static pressure. Featuring an advanced control system, our rollers are easy to operate, with a robust structure designed for durability in harsh conditions. Equipped with low-emission engines and energy-saving technology, they reduce environmental impact and energy consumption. Perfect for compacting soil, asphalt, and gravel, HIGHTOP rollers improve road surface smoothness and load-bearing capacity.
We offer cost-effective solutions with lower production costs from our China-based factory. We have more than 10 warehouses around the world and offer exceptional support including a 1-year warranty and lifetime technical support.
Features & Benefits
Beautiful shape and corrosion resistance
The surface of the machine body is subjected to the processes of shot blasting and pickling, phosphatization and plastic spraying, which increase the adhesion of paint molecules, prevent rust and corrosion resistance, making the road roller more beautiful and durable.
Flexible steering
HT-JS700C Small ride-on Road Roller is a two-way hydraulic stepless speed change traveler, which has a small working radius, easy operation, flexible steering and high construction efficiency during compaction work.
Changchai Engine
Changchai water-cooled diesel engine, electric start. Strong power, easy to start. International brand NSK high-precision radial ball bearings with seats ensure the overall performance of the equipment.
Simple and convenient operation
Compact operation lever, easy to operate, effectively improve work efficiency.
Wide application
Small driving roller is widely used for compacting asphalt surface, compacting gravel, sand and other engineering foundation. Superior performance, easy to operate durable features.
700mm wide vibrating wheel
Small roller size of the roller, can be compacted in a small area, more flexible and more applicable
Parameters
Mdodel:HT-JS700C
Speed: 0-6km/h
Turning radius:1800mm
Climbing ability: 30%
Static line load before/after:32/22N/cm
Nominal amplitude:0.5mm
Vibration frequency: 75Hz
Excitation force: 20KN
Driving form:hydraulic drive
Mode of vibration:One-touch vibration-electromagnetic clutch,Front wheel vibration
Steering form:Rear wheel vibration
Engine: Chang Chai R180
Type: Diesel engine, vertical three cylinder water cooling
Power:8HP/2300rpm
Tank Capacity: 3.5L
Specific fuel consumption:280/395/313g/kw·h
Vibrating wheel width：700mm
Vibrating wheel diameter：530mm
Total length:1750mm
Overall width:860mm
Overall height:1250mm
Package size:1900*1000*1420mm
Working weight: 720kg
