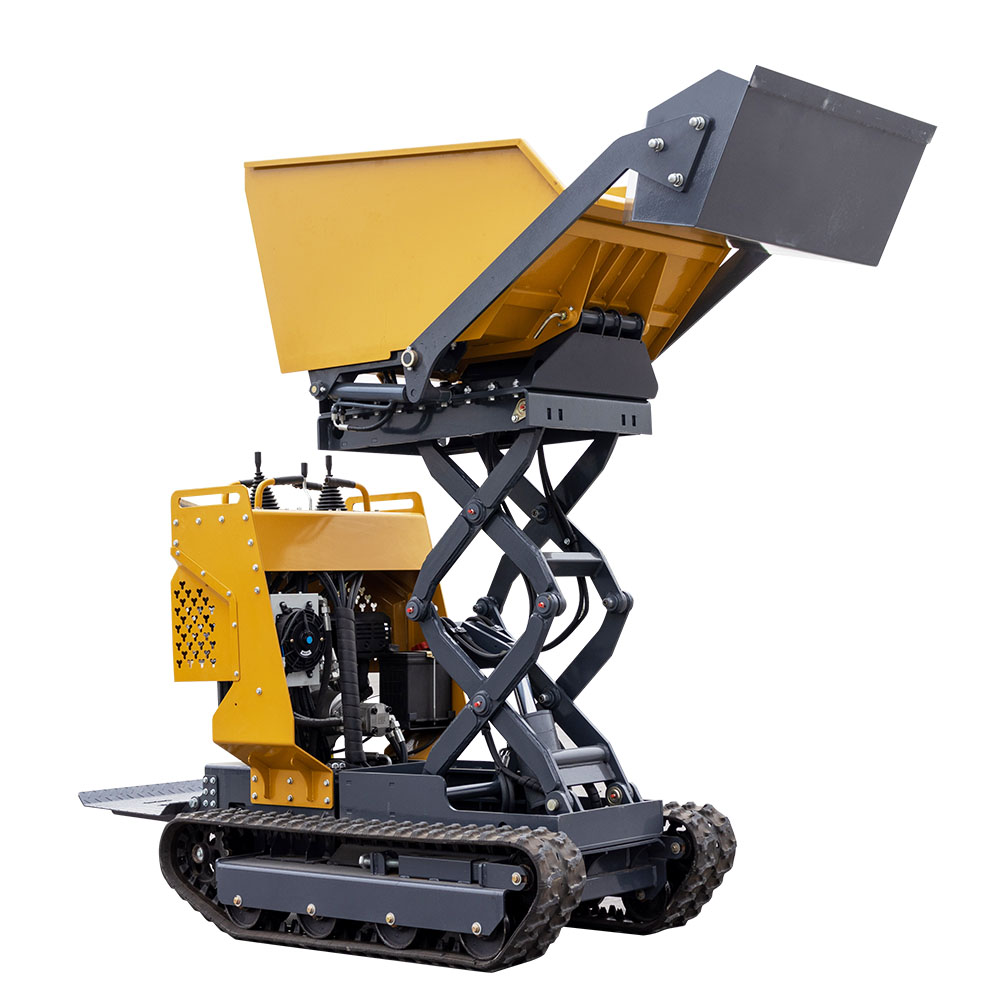

HT500Y-5 Lift Mini Dumper
CONTACT Beleevo
Sending A Form Implies That You Agree To Receive E-Mails From HighTop® With Information About Services, Programs, Etc.
Overview
HIGHTOP mini crawler dumpers are perfect for construction, renovations, and landscaping on challenging terrains. With load capacities from 500 kg to 2,900 kg, they deliver exceptional strength and versatility. Their compact design and advanced technology ensure high performance and safety, even in conditions where wheeled machines may struggle.
We offer cost-effective solutions with lower production costs from our China-based factory. As a one-stop shop for certified, high-quality machinery。 We have more than 10 warehouses around the world and offer exceptional support, including a 1-year warranty and lifetime technical assistance.
Features & Benefits
Briggs & Stratton Engine
With a Briggs & Stratton engine, our mini crawler dumper delivers powerful, fuel-efficient performance with excellent heat dispersion. It excels in precision and ease. Enjoy smooth operation, minimal vibrations, and long-lasting durability.
1500mm Max lifting discharge height
With an unloading height of up to 1500mm, this Hightop mini dumper helps you to load and unload materials from heights with ease.
Foldable platform
This HIHGTOP crawler dumper uses foldable foot hold, which can be folded to help you quickly pass through steep and narrow road sections.
Powerful Loading and Unloading
Revolutionize your workflow with our hydraulic tipping and retraction feature, easily controlled by a single button. Say goodbye to labor-intensive tipping and complex controls. Designed for contractors who value efficiency, this innovation simplifies tasks, enhancing precision and convenience for smarter project execution.
500kg Loading Capacity
Maximize efficiency on the job with the crawler dumper, boasting a formidable 500kg load capacity, enabling you to transport hefty materials in fewer trips and significantly cut down on project time. This dumper is the ultimate tool for elevating your operational productivity to new levels.
Versatile Dimensions for Any Space
Adapt to any environment with our mini dumper’s flexible dimensions. Its compact design allows it to maneuver easily in tight spaces and challenging terrains, making it perfect for diverse work sites. Whether working in confined areas or expansive projects, this adaptability ensures optimal performance and efficiency, enhancing your project’s versatility and ease of operation.
Parameters
Model:HT500Y-5
Engine Model:BRIGGS STRATTON 420
Engine Type:Single cylinder, OHV, 4-stroke, air cooling
displacement :420CC
Rated Power:13.5HP/3600rpm
Fuel Type:92 # Gasoline
Fuel Consumption:≤0.7g/kw·h
Fuel Tank capacity:6.5L
Engine oil capacity:1.1L
Total Weight:880kg
Max loading weight horizontal transport:1000kg
Max. Lifting load:550kg
Machin size（Without pedal, without bucket）:1800*880*1920mm
Bucket size with foot pedal:2700*880*1920mm
Container size：1220*800*600mm
Chassis width：850mm
Max lifting discharge height:1500mm
Tipping interval:350mm
track width：180mm
Track grounding length：915mm
Chassis ground clearance: 100mm
Cargo box Capacity:290dm³
Tipping Systme:Hydraulic Tipper
Tilting Angle;100°
Walking Speed :3km/h
Minimum Turning radius:1300mm
Track gauge:670mm
Chassis ground clearance:100mm
Climbing abillty:25km/h
Hydraulic tank capacity:12L
